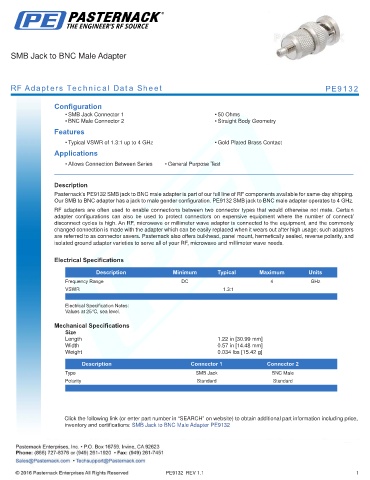

SMB Jack to BNC Male Adapter

RF Adapters Technical Data Sheet PE9132

Configuration
• SMB Jack Connector 1 • 50 Ohms
• BNC Male Connector 2 • Straight Body Geometry
Features

• Typical VSWR of 1.3:1 up to 4 GHz • Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9132 SMB jack to BNC male adapter is part of our full line of RF components available for same-day shipping.
Our SMB to BNC adapter has a jack to male gender configuration. PE9132 SMB jack to BNC male adapter operates to 4 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 1.22 in [30.99 mm]
Width 0.57 in [14.48 mm]
Weight 0.034 lbs [15.42 g]
.
Description Connector 1 Connector 2
Type SMB Jack BNC Male
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Jack to BNC Male Adapter PE9132

PE9132 REV 1.1 1
