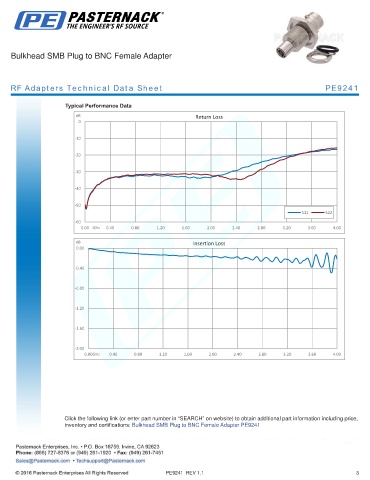

Bulkhead SMB Plug to BNC Female Adapter
RF Adapters Technical Data Sheet PE9241
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
S11 S22
-60
0.00 GHz 0.40 0.80 1.20 1.60 2.00 2.40 2.80 3.20 3.60 4.00
dB Insertion Loss
0.00
-0.40
-0.80
-1.20
-1.60
-2.00
0.00GHz 0.40 0.80 1.20 1.60 2.00 2.40 2.80 3.20 3.60 4.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead SMB Plug to BNC Female Adapter PE9241
PE9241 REV 1.1 3
