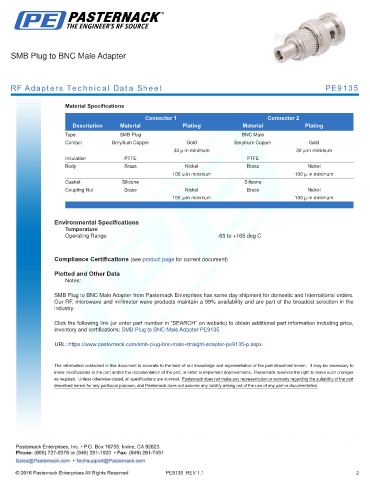

SMB Plug to BNC Male Adapter

RF Adapters Technical Data Sheet PE9135

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMB Plug BNC Male
Contact Beryllium Copper Gold Beryllium Copper Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
Gasket Silicone Silicone
Coupling Nut Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

SMB Plug to BNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug to BNC Male Adapter PE9135

URL: https://www.pasternack.com/smb-plug-bnc-male-straight-adapter-pe9135-p.aspx

PE9135 REV 1.1 2
