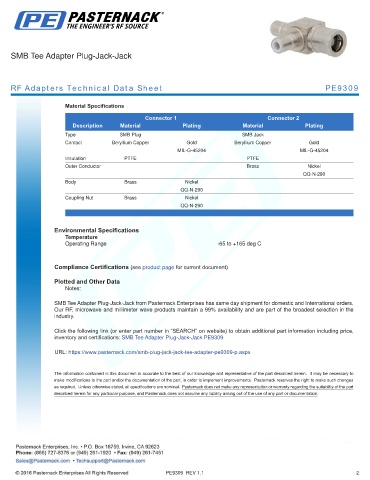

SMB Tee Adapter Plug-Jack-Jack

RF Adapters Technical Data Sheet PE9309

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMB Plug SMB Jack
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

SMB Tee Adapter Plug-Jack-Jack from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Tee Adapter Plug-Jack-Jack PE9309

URL: https://www.pasternack.com/smb-plug-jack-jack-tee-adapter-pe9309-p.aspx

PE9309 REV 1.1 2
