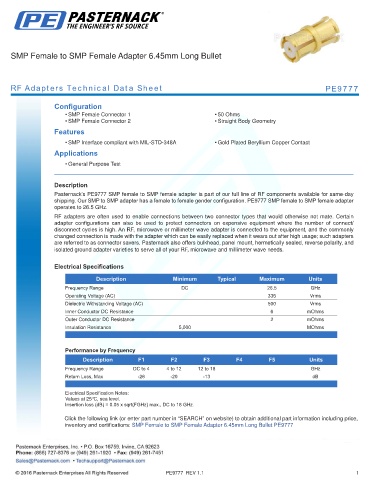

SMP Female to SMP Female Adapter 6.45mm Long Bullet

RF Adapters Technical Data Sheet PE9777

Configuration
• SMP Female Connector 1 • 50 Ohms
• SMP Female Connector 2 • Straight Body Geometry
Features

• SMP Interface compliant with MIL-STD-348A • Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9777 SMP female to SMP female adapter is part of our full line of RF components available for same-day
shipping. Our SMP to SMP adapter has a female to female gender configuration. PE9777 SMP female to SMP female adapter
operates to 26.5 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 26.5 GHz
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 4 4 to 12 12 to 18 GHz
Return Loss, Max -26 -20 -13 dB
.
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion loss (dB) = 0.05 x sqrt(FGHz) max., DC to 18 GHz.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Adapter 6.45mm Long Bullet PE9777

PE9777 REV 1.1 1
