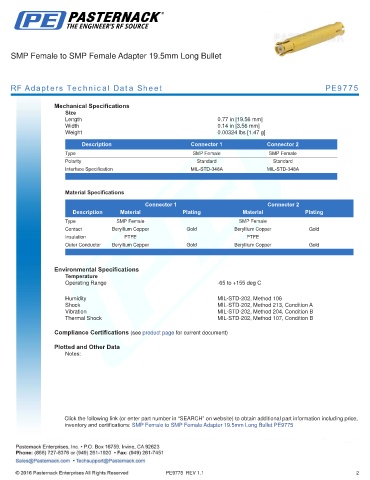

SMP Female to SMP Female Adapter 19.5mm Long Bullet

RF Adapters Technical Data Sheet PE9775

Mechanical Specifications
Size
Length 0.77 in [19.56 mm]
Width 0.14 in [3.56 mm]
Weight 0.00324 lbs [1.47 g]
.
Description Connector 1 Connector 2
Type SMP Female SMP Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMP Female SMP Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Beryllium Copper Gold Beryllium Copper Gold
. .

Environmental Specifications
Temperature
Operating Range -65 to +155 deg C
.
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition A
Vibration MIL-STD-202, Method 204, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Adapter 19.5mm Long Bullet PE9775

PE9775 REV 1.1 2
