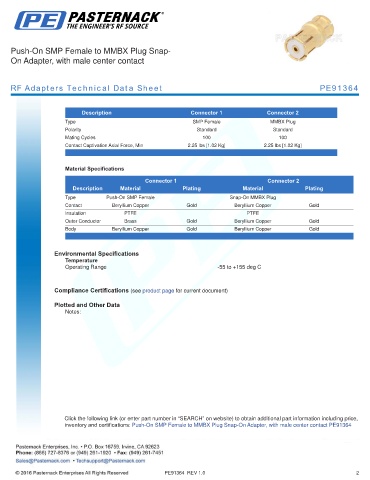

Push-On SMP Female to MMBX Plug Snap-
On Adapter, with male center contact

RF Adapters Technical Data Sheet PE91364

.
Description Connector 1 Connector 2
Type SMP Female MMBX Plug
Polarity Standard Standard
Mating Cycles 100 100
Contact Captivation Axial Force, Min 2.25 lbs [1.02 Kg] 2.25 lbs [1.02 Kg]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type Push-On SMP Female Snap-On MMBX Plug
Contact Beryllium Copper Gold Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Brass Gold Beryllium Copper Gold
Body Beryllium Copper Gold Beryllium Copper Gold
. .

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Push-On SMP Female to MMBX Plug Snap-On Adapter, with male center contact PE91364
