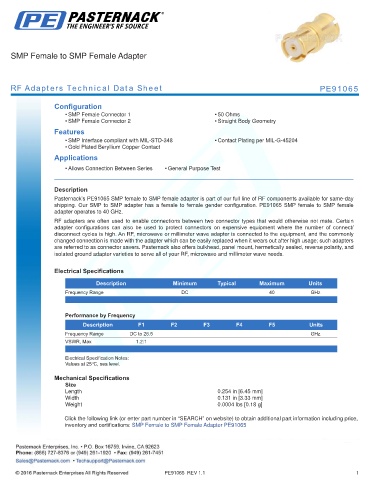

SMP Female to SMP Female Adapter

RF Adapters Technical Data Sheet PE91065

Configuration
• SMP Female Connector 1 • 50 Ohms
• SMP Female Connector 2 • Straight Body Geometry
Features
• SMP Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE91065 SMP female to SMP female adapter is part of our full line of RF components available for same-day
shipping. Our SMP to SMP adapter has a female to female gender configuration. PE91065 SMP female to SMP female
adapter operates to 40 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 26.5 GHz
VSWR, Max 1.2:1
.
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.254 in [6.45 mm]
Width 0.131 in [3.33 mm]
Weight 0.0004 lbs [0.18 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Adapter PE91065

PE91065 REV 1.1 1
