SSMA Male to SSMA Female Adapter

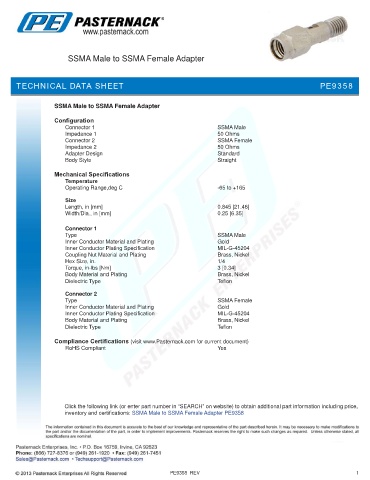

TECHNICAL DATA SHEET PE9358

SSMA Male to SSMA Female Adapter

Configuration
Connector 1 SSMA Male
Impedance 1 50 Ohms
Connector 2 SSMA Female
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 0.845 [21.46]
Width/Dia., in [mm] 0.25 [6.35]
.
Connector 1
Type SSMA Male
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Hex Size, in. 1/4
Torque, in-lbs [Nm] 3 [0.34]
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Connector 2
Type SSMA Female
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMA Male to SSMA Female Adapter PE9358

PE9358 REV 1
