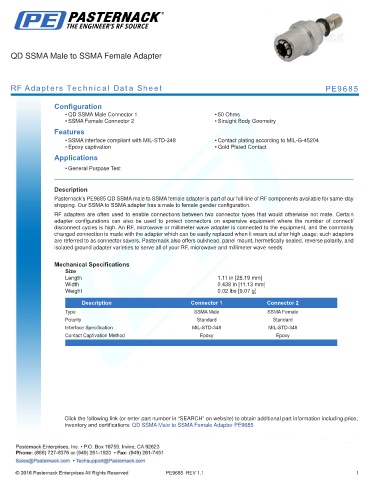

QD SSMA Male to SSMA Female Adapter

RF Adapters Technical Data Sheet PE9685

Configuration
• QD SSMA Male Connector 1 • 50 Ohms
• SSMA Female Connector 2 • Straight Body Geometry
Features
• SSMA interface compliant with MIL-STD-348 • Contact plating according to MIL-G-45204
• Epoxy captivation • Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9685 QD SSMA male to SSMA female adapter is part of our full line of RF components available for same-day
shipping. Our SSMA to SSMA adapter has a male to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.11 in [28.19 mm]
Width 0.438 in [11.13 mm]
Weight 0.02 lbs [9.07 g]
.
Description Connector 1 Connector 2
Type SSMA Male SSMA Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Contact Captivation Method Epoxy Epoxy
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QD SSMA Male to SSMA Female Adapter PE9685
