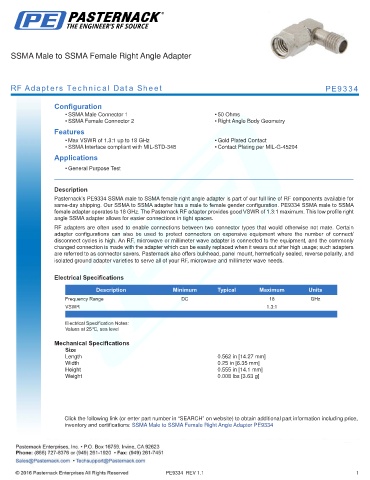

SSMA Male to SSMA Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9334

Configuration
• SSMA Male Connector 1 • 50 Ohms
• SSMA Female Connector 2 • Right Angle Body Geometry
Features
• Max VSWR of 1.3:1 up to 18 GHz • Gold Plated Contact
• SSMA Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• General Purpose Test
.
Description
Pasternack’s PE9334 SSMA male to SSMA female right angle adapter is part of our full line of RF components available for
same-day shipping. Our SSMA to SSMA adapter has a male to female gender configuration. PE9334 SSMA male to SSMA
female adapter operates to 18 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This low profile right
angle SSMA adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level

Mechanical Specifications
Size
Length 0.562 in [14.27 mm]
Width 0.25 in [6.35 mm]
Height 0.555 in [14.1 mm]
Weight 0.008 lbs [3.63 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMA Male to SSMA Female Right Angle Adapter PE9334

PE9334 REV 1.1 1
