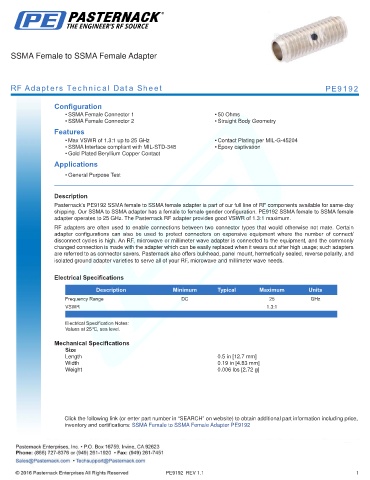

SSMA Female to SSMA Female Adapter

RF Adapters Technical Data Sheet PE9192

Configuration
• SSMA Female Connector 1 • 50 Ohms
• SSMA Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 25 GHz • Contact Plating per MIL-G-45204
• SSMA Interface compliant with MIL-STD-348 • Epoxy captivation
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test

.
Description
Pasternack’s PE9192 SSMA female to SSMA female adapter is part of our full line of RF components available for same-day
shipping. Our SSMA to SSMA adapter has a female to female gender configuration. PE9192 SSMA female to SSMA female
adapter operates to 25 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 25 GHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.5 in [12.7 mm]
Width 0.19 in [4.83 mm]
Weight 0.006 lbs [2.72 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMA Female to SSMA Female Adapter PE9192

PE9192 REV 1.1 1
