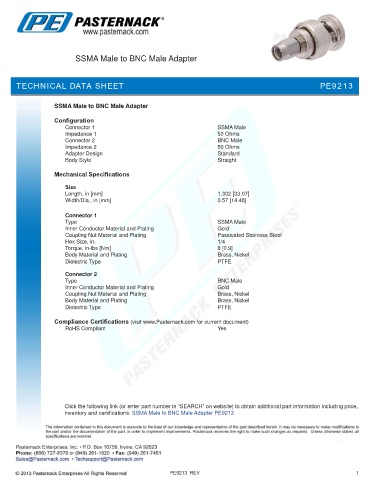

SSMA Male to BNC Male Adapter

TECHNICAL DATA SHEET PE9213

SSMA Male to BNC Male Adapter

Configuration
Connector 1 SSMA Male
Impedance 1 50 Ohms
Connector 2 BNC Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.302 [33.07]
Width/Dia., in [mm] 0.57 [14.48]
.
Connector 1
Type SSMA Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Passivated Stainless Steel
Hex Size, in. 1/4
Torque, in-lbs [Nm] 8 [0.9]
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Connector 2
Type BNC Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMA Male to BNC Male Adapter PE9213

PE9213 REV 1
