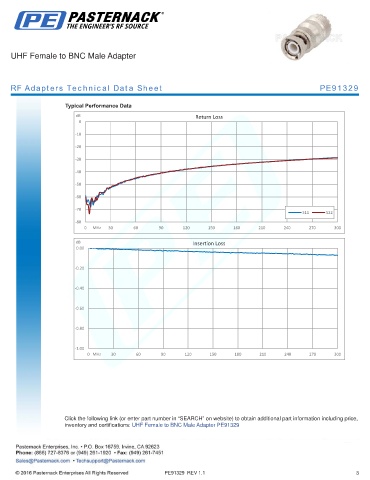

UHF Female to BNC Male Adapter
RF Adapters Technical Data Sheet PE91329
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
-70
S11 S22
-80
0 MHz 30 60 90 120 150 180 210 240 270 300
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0 MHz 30 60 90 120 150 180 210 240 270 300
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female to BNC Male Adapter PE91329
PE91329 REV 1.1 3
