75 Ohm F Female to RCA Jack Adapter

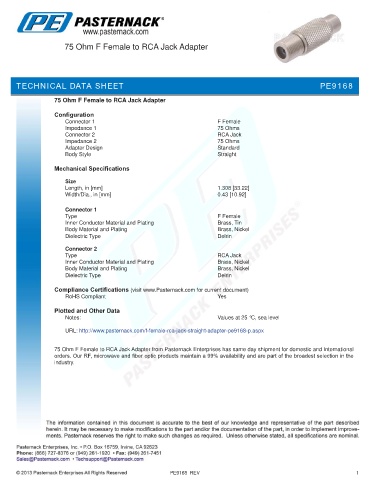

TECHNICAL DATA SHEET PE9168

75 Ohm F Female to RCA Jack Adapter

Configuration
Connector 1 F Female
Impedance 1 75 Ohms
Connector 2 RCA Jack
Impedance 2 75 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.308 [33.22]
Width/Dia., in [mm] 0.43 [10.92]
.
Connector 1
Type F Female
Inner Conductor Material and Plating Brass, Tin
Body Material and Plating Brass, Nickel
Dielectric Type Delrin
Connector 2
Type RCA Jack
Inner Conductor Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Delrin

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
URL: http://www.pasternack.com/f-female-rca-jack-straight-adapter-pe9168-p.aspx

75 Ohm F Female to RCA Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

PE9168 REV 1
