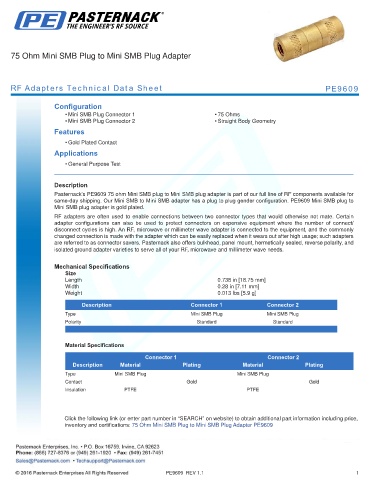

75 Ohm Mini SMB Plug to Mini SMB Plug Adapter

RF Adapters Technical Data Sheet PE9609

Configuration
• Mini SMB Plug Connector 1 • 75 Ohms
• Mini SMB Plug Connector 2 • Straight Body Geometry
Features

• Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9609 75 ohm Mini SMB plug to Mini SMB plug adapter is part of our full line of RF components available for
same-day shipping. Our Mini SMB to Mini SMB adapter has a plug to plug gender configuration. PE9609 Mini SMB plug to
Mini SMB plug adapter is gold plated.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.738 in [18.75 mm]
Width 0.28 in [7.11 mm]
Weight 0.013 lbs [5.9 g]
.
Description Connector 1 Connector 2
Type Mini SMB Plug Mini SMB Plug
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type Mini SMB Plug Mini SMB Plug
Contact Gold Gold
Insulation PTFE PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Plug to Mini SMB Plug Adapter PE9609

PE9609 REV 1.1 1
