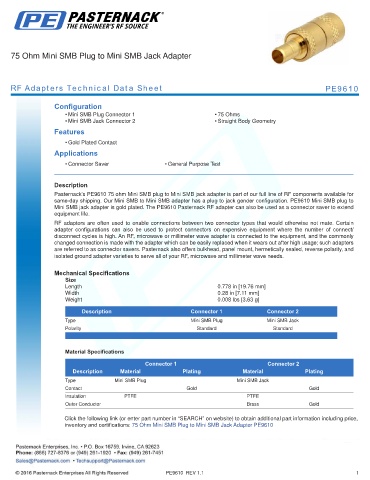

75 Ohm Mini SMB Plug to Mini SMB Jack Adapter

RF Adapters Technical Data Sheet PE9610

Configuration
• Mini SMB Plug Connector 1 • 75 Ohms
• Mini SMB Jack Connector 2 • Straight Body Geometry
Features

• Gold Plated Contact
Applications
• Connector Saver • General Purpose Test
.
Description
Pasternack’s PE9610 75 ohm Mini SMB plug to Mini SMB jack adapter is part of our full line of RF components available for
same-day shipping. Our Mini SMB to Mini SMB adapter has a plug to jack gender configuration. PE9610 Mini SMB plug to
Mini SMB jack adapter is gold plated. The PE9610 Pasternack RF adapter can also be used as a connector saver to extend
equipment life.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.778 in [19.76 mm]
Width 0.28 in [7.11 mm]
Weight 0.008 lbs [3.63 g]
.
Description Connector 1 Connector 2
Type Mini SMB Plug Mini SMB Jack
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type Mini SMB Plug Mini SMB Jack
Contact Gold Gold
Insulation PTFE PTFE
Outer Conductor Brass Gold

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Plug to Mini SMB Jack Adapter PE9610

PE9610 REV 1.1 1
