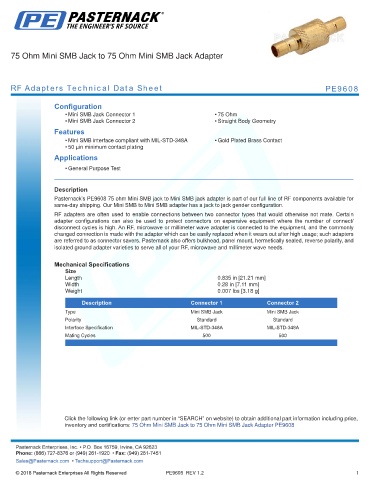

75 Ohm Mini SMB Jack to 75 Ohm Mini SMB Jack Adapter

RF Adapters Technical Data Sheet PE9608

Configuration
• Mini SMB Jack Connector 1 • 75 Ohm
• Mini SMB Jack Connector 2 • Straight Body Geometry
Features
• Mini SMB interface compliant with MIL-STD-348A • Gold Plated Brass Contact
• 50 µin minimum contact plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9608 75 ohm Mini SMB jack to Mini SMB jack adapter is part of our full line of RF components available for
same-day shipping. Our Mini SMB to Mini SMB adapter has a jack to jack gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.835 in [21.21 mm]
Width 0.28 in [7.11 mm]
Weight 0.007 lbs [3.18 g]
.
Description Connector 1 Connector 2
Type Mini SMB Jack Mini SMB Jack
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack to 75 Ohm Mini SMB Jack Adapter PE9608
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9608 REV 1.2 1
