Bulkhead 75 Ohm Mini SMB Jack to Mini SMB Jack Adapter

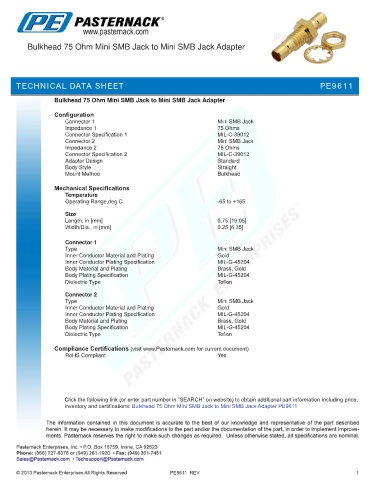

TECHNICAL DATA SHEET PE9611

Bulkhead 75 Ohm Mini SMB Jack to Mini SMB Jack Adapter

Configuration
Connector 1 Mini SMB Jack
Impedance 1 75 Ohms
Connector Specification 1 MIL-C-39012
Connector 2 Mini SMB Jack
Impedance 2 75 Ohms
Connector Specification 2 MIL-C-39012
Adapter Design Standard
Body Style Straight
Mount Method Bulkhead

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 0.75 [19.05]
Width/Dia., in [mm] 0.25 [6.35]
.
Connector 1
Type Mini SMB Jack
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Gold
Body Plating Specification MIL-G-45204
Dielectric Type Teflon

Connector 2
Type Mini SMB Jack
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Gold
Body Plating Specification MIL-G-45204
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead 75 Ohm Mini SMB Jack to Mini SMB Jack Adapter PE9611

PE9611 REV 1
