75 Ohm Mini SMB Plug to BNC Male Adapter

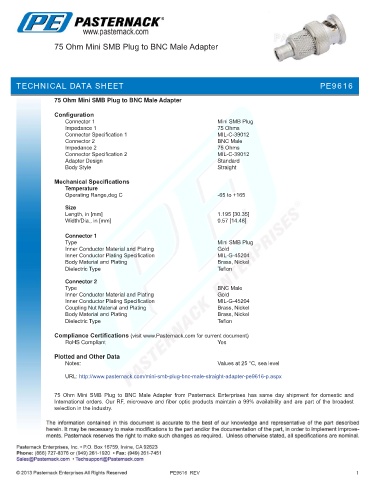

TECHNICAL DATA SHEET PE9616

75 Ohm Mini SMB Plug to BNC Male Adapter

Configuration
Connector 1 Mini SMB Plug
Impedance 1 75 Ohms
Connector Specification 1 MIL-C-39012
Connector 2 BNC Male
Impedance 2 75 Ohms
Connector Specification 2 MIL-C-39012
Adapter Design Standard
Body Style Straight

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 1.195 [30.35]
Width/Dia., in [mm] 0.57 [14.48]
.
Connector 1
Type Mini SMB Plug
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type BNC Male
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/mini-smb-plug-bnc-male-straight-adapter-pe9616-p.aspx

75 Ohm Mini SMB Plug to BNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

PE9616 REV 1
