75 Ohm Mini SMB Plug to BNC Female Adapter

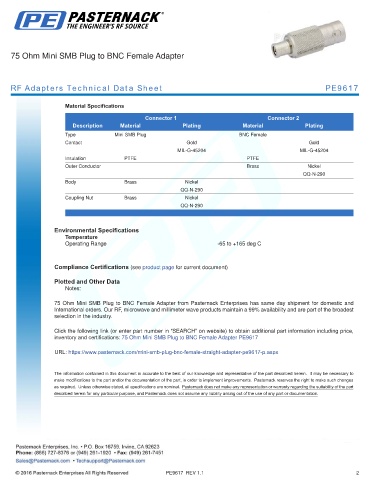

RF Adapters Technical Data Sheet PE9617

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type Mini SMB Plug BNC Female
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm Mini SMB Plug to BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Plug to BNC Female Adapter PE9617

URL: https://www.pasternack.com/mini-smb-plug-bnc-female-straight-adapter-pe9617-p.aspx

PE9617 REV 1.1 2
