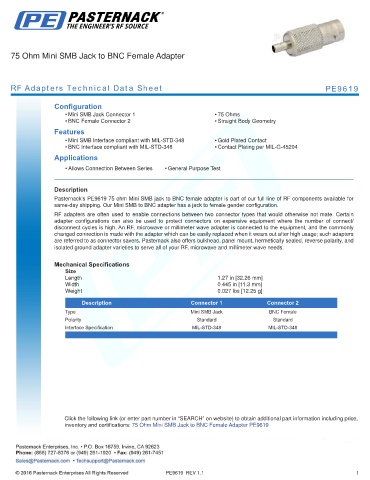

75 Ohm Mini SMB Jack to BNC Female Adapter

RF Adapters Technical Data Sheet PE9619

Configuration
• Mini SMB Jack Connector 1 • 75 Ohms
• BNC Female Connector 2 • Straight Body Geometry
Features
• Mini SMB Interface compliant with MIL-STD-348 • Gold Plated Contact
• BNC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9619 75 ohm Mini SMB jack to BNC female adapter is part of our full line of RF components available for
same-day shipping. Our Mini SMB to BNC adapter has a jack to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.27 in [32.26 mm]
Width 0.445 in [11.3 mm]
Weight 0.027 lbs [12.25 g]
.
Description Connector 1 Connector 2
Type Mini SMB Jack BNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack to BNC Female Adapter PE9619
