75 Ohm N Male to N Male Adapter

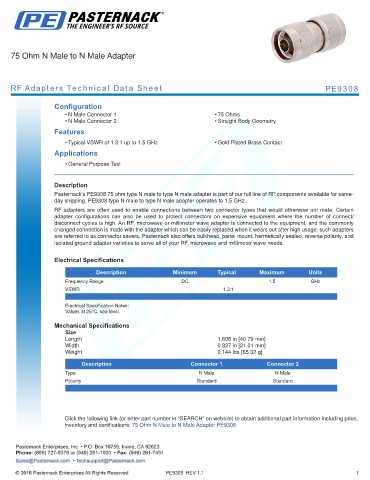

RF Adapters Technical Data Sheet PE9308

Configuration
• N Male Connector 1 • 75 Ohms
• N Male Connector 2 • Straight Body Geometry
Features

• Typical VSWR of 1.3:1 up to 1.5 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9308 75 ohm type N male to type N male adapter is part of our full line of RF components available for same-
day shipping. PE9308 type N male to type N male adapter operates to 1.5 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1.5 GHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 1.606 in [40.79 mm]
Width 0.827 in [21.01 mm]
Weight 0.144 lbs [65.32 g]
.
Description Connector 1 Connector 2
Type N Male N Male
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to N Male Adapter PE9308

PE9308 REV 1.1 1
