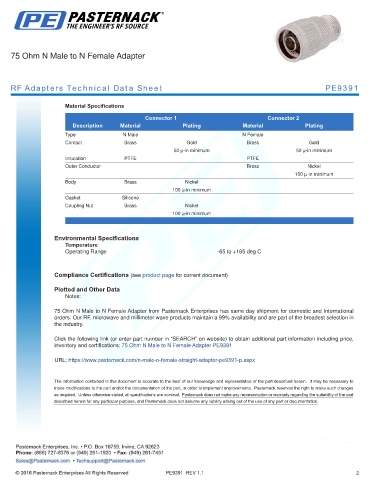

75 Ohm N Male to N Female Adapter

RF Adapters Technical Data Sheet PE9391

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male N Female
Contact Brass Gold Brass Gold
50 µ-in minimum 50 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100 µ-in minimum
Body Brass Nickel
100 µ-in minimum
Gasket Silicone
Coupling Nut Brass Nickel
100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm N Male to N Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to N Female Adapter PE9391

URL: https://www.pasternack.com/n-male-n-female-straight-adapter-pe9391-p.aspx

PE9391 REV 1.1 2
