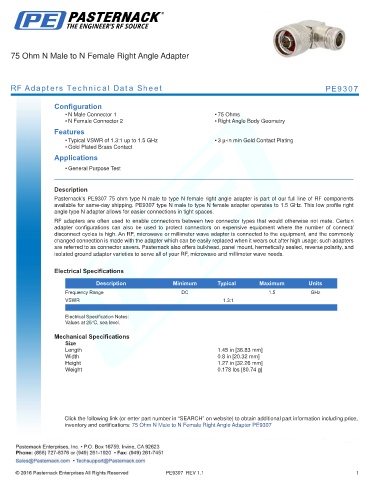

75 Ohm N Male to N Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9307

Configuration
• N Male Connector 1 • 75 Ohms
• N Female Connector 2 • Right Angle Body Geometry
Features
• Typical VSWR of 1.3:1 up to 1.5 GHz • 3 µ-in min Gold Contact Plating
• Gold Plated Brass Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9307 75 ohm type N male to type N female right angle adapter is part of our full line of RF components
available for same-day shipping. PE9307 type N male to type N female adapter operates to 1.5 GHz. This low profile right
angle type N adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1.5 GHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.45 in [36.83 mm]
Width 0.8 in [20.32 mm]
Height 1.27 in [32.26 mm]
Weight 0.178 lbs [80.74 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to N Female Right Angle Adapter PE9307

PE9307 REV 1.1 1
