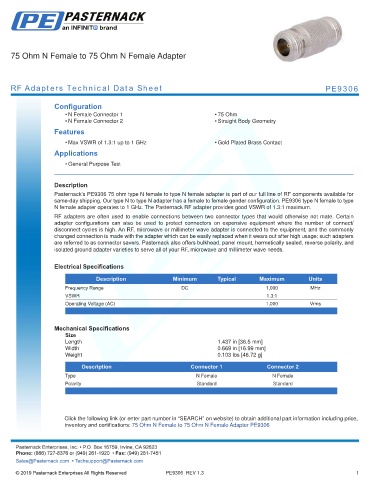

75 Ohm N Female to 75 Ohm N Female Adapter

RF Adapters Technical Data Sheet PE9306

Configuration
• N Female Connector 1 • 75 Ohm
• N Female Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.3:1 up to 1 GHz • Gold Plated Brass Contact
Applications

• General Purpose Test
.
Description
Pasternack’s PE9306 75 ohm type N female to type N female adapter is part of our full line of RF components available for
same-day shipping. Our type N to type N adapter has a female to female gender configuration. PE9306 type N female to type
N female adapter operates to 1 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 1,000 Vrms
. .

Mechanical Specifications
Size
Length 1.437 in [36.5 mm]
Width 0.669 in [16.99 mm]
Weight 0.103 lbs [46.72 g]
.
Description Connector 1 Connector 2
Type N Female N Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to 75 Ohm N Female Adapter PE9306
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9306 REV 1.3 1
