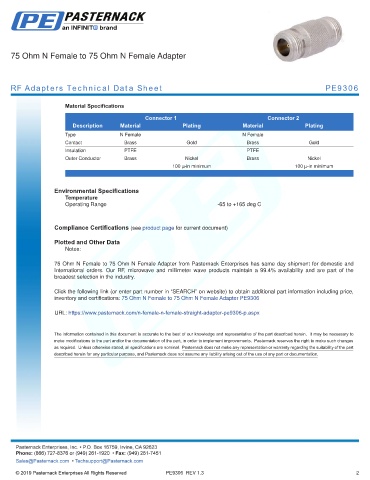

75 Ohm N Female to 75 Ohm N Female Adapter

RF Adapters Technical Data Sheet PE9306

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female N Female
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm N Female to 75 Ohm N Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to 75 Ohm N Female Adapter PE9306

URL: https://www.pasternack.com/n-female-n-female-straight-adapter-pe9306-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9306 REV 1.3 2
