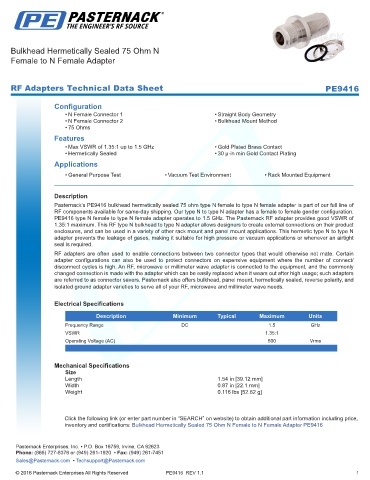

Bulkhead Hermetically Sealed 75 Ohm N
Female to N Female Adapter

RF Adapters Technical Data Sheet PE9416

Configuration
• N Female Connector 1 • Straight Body Geometry
• N Female Connector 2 • Bulkhead Mount Method
• 75 Ohms
Features
• Max VSWR of 1.35:1 up to 1.5 GHz • Gold Plated Brass Contact
• Hermetically Sealed • 30 µ-in min Gold Contact Plating
Applications
• General Purpose Test • Vacuum Test Environment • Rack Mounted Equipment

.
Description
Pasternack’s PE9416 bulkhead hermetically sealed 75 ohm type N female to type N female adapter is part of our full line of
RF components available for same-day shipping. Our type N to type N adapter has a female to female gender configuration.
PE9416 type N female to type N female adapter operates to 1.5 GHz. The Pasternack RF adapter provides good VSWR of
1.35:1 maximum. This RF type N bulkhead to type N adapter allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications. This hermetic type N to type N
adapter prevents the leakage of gases, making it suitable for high pressure or vacuum applications or whenever an airtight
seal is required.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1.5 GHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.54 in [39.12 mm]
Width 0.87 in [22.1 mm]
Weight 0.116 lbs [52.62 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Hermetically Sealed 75 Ohm N Female to N Female Adapter PE9416

PE9416 REV 1.1 1
