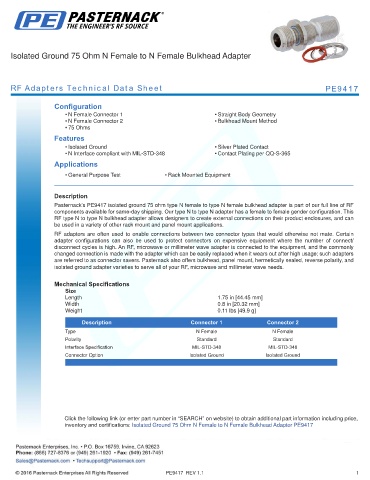

Isolated Ground 75 Ohm N Female to N Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE9417

Configuration
• N Female Connector 1 • Straight Body Geometry
• N Female Connector 2 • Bulkhead Mount Method
• 75 Ohms
Features
• Isolated Ground • Silver Plated Contact
• N Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9417 isolated ground 75 ohm type N female to type N female bulkhead adapter is part of our full line of RF
components available for same-day shipping. Our type N to type N adapter has a female to female gender configuration. This
RF type N to type N bulkhead adapter allows designers to create external connections on their product enclosures, and can
be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.75 in [44.45 mm]
Width 0.8 in [20.32 mm]
Weight 0.11 lbs [49.9 g]
.
Description Connector 1 Connector 2
Type N Female N Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Connector Option Isolated Ground Isolated Ground
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Isolated Ground 75 Ohm N Female to N Female Bulkhead Adapter PE9417

PE9417 REV 1.1 1
