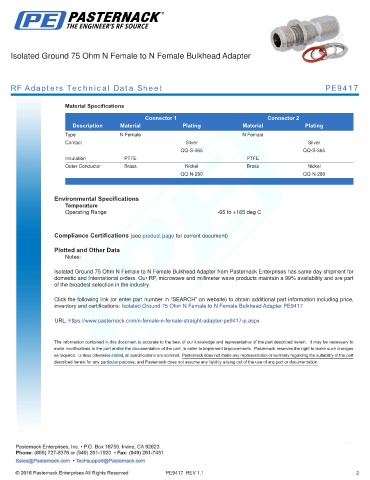

Isolated Ground 75 Ohm N Female to N Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE9417

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female N Female
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Isolated Ground 75 Ohm N Female to N Female Bulkhead Adapter from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part
of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Isolated Ground 75 Ohm N Female to N Female Bulkhead Adapter PE9417

URL: https://www.pasternack.com/n-female-n-female-straight-adapter-pe9417-p.aspx

PE9417 REV 1.1 2
