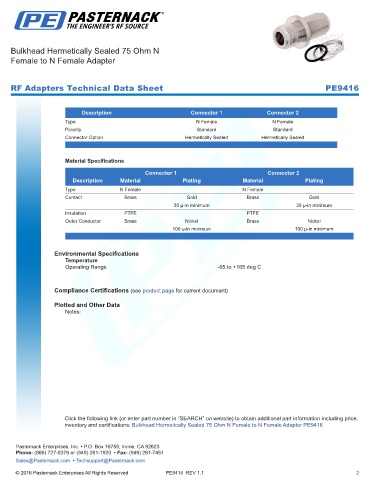

Bulkhead Hermetically Sealed 75 Ohm N
Female to N Female Adapter

RF Adapters Technical Data Sheet PE9416

.
Description Connector 1 Connector 2
Type N Female N Female
Polarity Standard Standard
Connector Option Hermetically Sealed Hermetically Sealed
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female N Female
Contact Brass Gold Brass Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Hermetically Sealed 75 Ohm N Female to N Female Adapter PE9416
