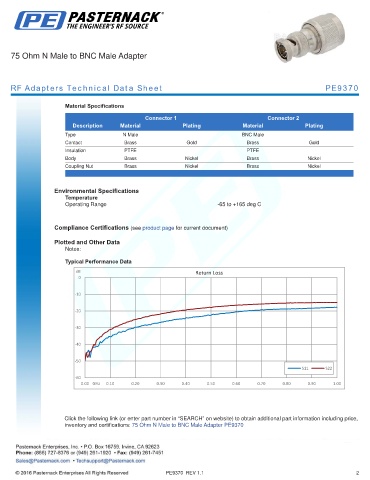

75 Ohm N Male to BNC Male Adapter

RF Adapters Technical Data Sheet PE9370

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male BNC Male
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
Coupling Nut Brass Nickel Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Typical Performance Data
dB Return Loss
0

-10

-20

-30

-40

-50
S11 S22
-60
0.00 GHz 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to BNC Male Adapter PE9370
