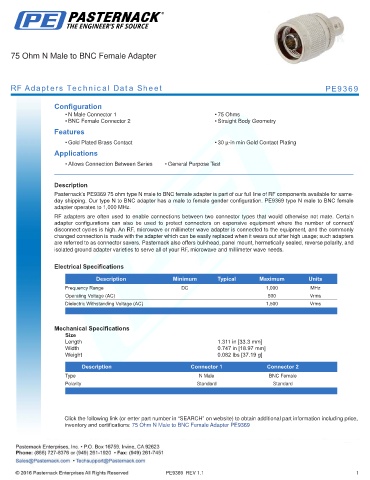

75 Ohm N Male to BNC Female Adapter

RF Adapters Technical Data Sheet PE9369

Configuration
• N Male Connector 1 • 75 Ohms
• BNC Female Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact • 30 µ-in min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9369 75 ohm type N male to BNC female adapter is part of our full line of RF components available for same-
day shipping. Our type N to BNC adapter has a male to female gender configuration. PE9369 type N male to BNC female
adapter operates to 1,000 MHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
. .

Mechanical Specifications
Size
Length 1.311 in [33.3 mm]
Width 0.747 in [18.97 mm]
Weight 0.082 lbs [37.19 g]
.
Description Connector 1 Connector 2
Type N Male BNC Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to BNC Female Adapter PE9369

PE9369 REV 1.1 1
