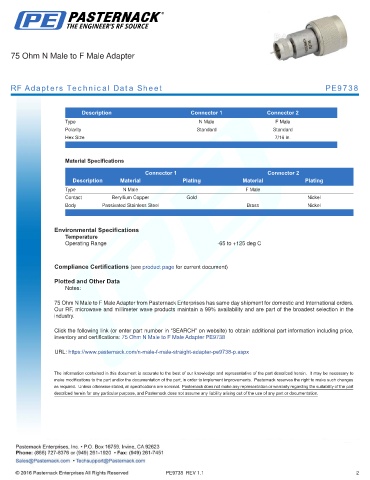

75 Ohm N Male to F Male Adapter

RF Adapters Technical Data Sheet PE9738

.
Description Connector 1 Connector 2
Type N Male F Male
Polarity Standard Standard
Hex Size 7/16 in.
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male F Male
Contact Beryllium Copper Gold Nickel
Body Passivated Stainless Steel Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm N Male to F Male Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to F Male Adapter PE9738

URL: https://www.pasternack.com/n-male-f-male-straight-adapter-pe9738-p.aspx

PE9738 REV 1.1 2
