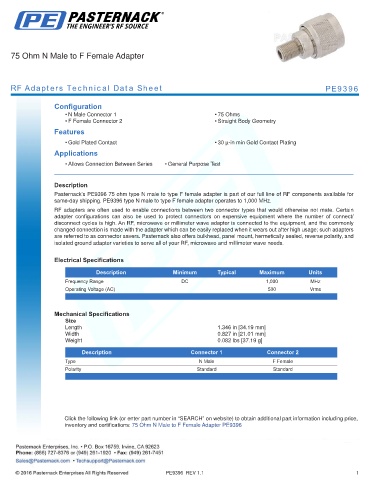

75 Ohm N Male to F Female Adapter

RF Adapters Technical Data Sheet PE9396

Configuration
• N Male Connector 1 • 75 Ohms
• F Female Connector 2 • Straight Body Geometry
Features

• Gold Plated Contact • 30 µ-in min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9396 75 ohm type N male to type F female adapter is part of our full line of RF components available for
same-day shipping. PE9396 type N male to type F female adapter operates to 1,000 MHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.346 in [34.19 mm]
Width 0.827 in [21.01 mm]
Weight 0.082 lbs [37.19 g]
.
Description Connector 1 Connector 2
Type N Male F Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to F Female Adapter PE9396

PE9396 REV 1.1 1
