75 Ohm N Male to N Female Right Angle Adapter

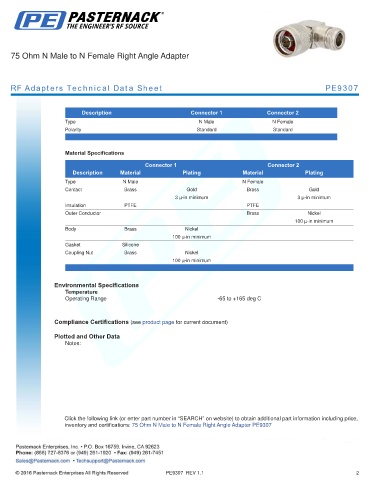

RF Adapters Technical Data Sheet PE9307

.
Description Connector 1 Connector 2
Type N Male N Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male N Female
Contact Brass Gold Brass Gold
3 µ-in minimum 3 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100 µ-in minimum
Body Brass Nickel
100 µ-in minimum
Gasket Silicone
Coupling Nut Brass Nickel
100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to N Female Right Angle Adapter PE9307
