75 Ohm N Male to N Female Right Angle Adapter

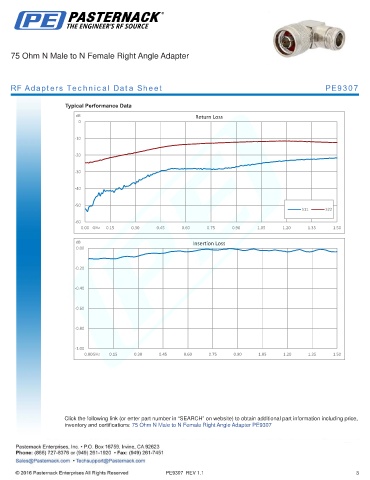

RF Adapters Technical Data Sheet PE9307
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
S11 S22
-60
0.00 GHz 0.15 0.30 0.45 0.60 0.75 0.90 1.05 1.20 1.35 1.50
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0.00GHz 0.15 0.30 0.45 0.60 0.75 0.90 1.05 1.20 1.35 1.50
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to N Female Right Angle Adapter PE9307
