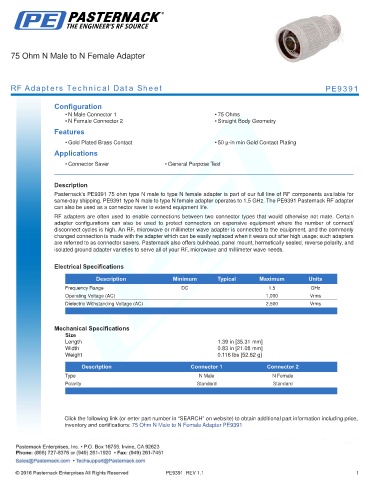

75 Ohm N Male to N Female Adapter

RF Adapters Technical Data Sheet PE9391

Configuration
• N Male Connector 1 • 75 Ohms
• N Female Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact • 50 µ-in min Gold Contact Plating
Applications
• Connector Saver • General Purpose Test
.
Description
Pasternack’s PE9391 75 ohm type N male to type N female adapter is part of our full line of RF components available for
same-day shipping. PE9391 type N male to type N female adapter operates to 1.5 GHz. The PE9391 Pasternack RF adapter
can also be used as a connector saver to extend equipment life.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1.5 GHz
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
. .

Mechanical Specifications
Size
Length 1.39 in [35.31 mm]
Width 0.83 in [21.08 mm]
Weight 0.116 lbs [52.62 g]
.
Description Connector 1 Connector 2
Type N Male N Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to N Female Adapter PE9391
