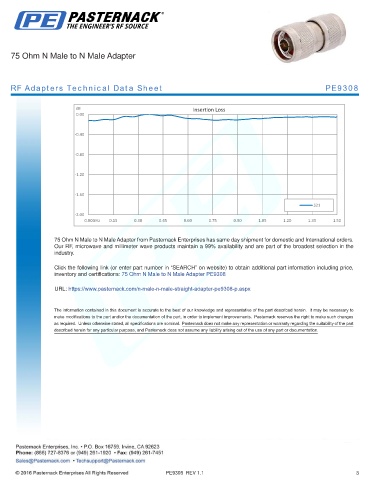

75 Ohm N Male to N Male Adapter

RF Adapters Technical Data Sheet PE9308

dB Insertion Loss
0.00

-0.40

-0.80

-1.20

-1.60
S21
-2.00
0.00GHz 0.15 0.30 0.45 0.60 0.75 0.90 1.05 1.20 1.35 1.50

75 Ohm N Male to N Male Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to N Male Adapter PE9308

URL: https://www.pasternack.com/n-male-n-male-straight-adapter-pe9308-p.aspx

PE9308 REV 1.1 3
