75 Ohm N Male to N Male Adapter

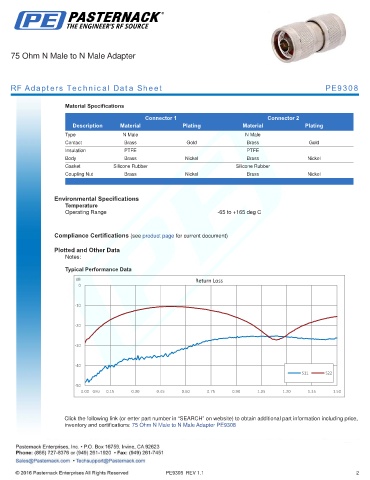

RF Adapters Technical Data Sheet PE9308

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male N Male
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
Gasket Silicone Rubber Silicone Rubber
Coupling Nut Brass Nickel Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Typical Performance Data
dB Return Loss
0

-10

-20

-30

-40
S11 S22

-50
0.00 GHz 0.15 0.30 0.45 0.60 0.75 0.90 1.05 1.20 1.35 1.50

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to N Male Adapter PE9308

PE9308 REV 1.1 2
