75 Ohm Mini SMB Jack to 75 Ohm Mini SMB Jack Adapter

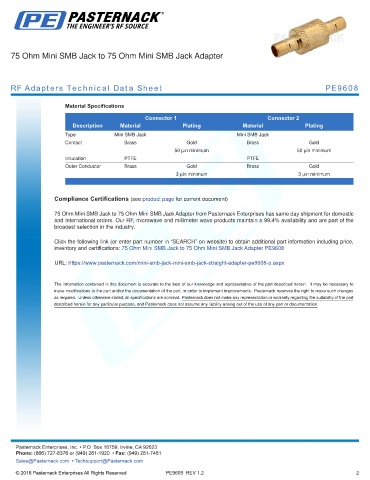

RF Adapters Technical Data Sheet PE9608

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type Mini SMB Jack Mini SMB Jack
Contact Brass Gold Brass Gold
50 µin minimum 50 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Gold Brass Gold
3 µin minimum 3 µin minimum
. .

Compliance Certifications (see product page for current document)

75 Ohm Mini SMB Jack to 75 Ohm Mini SMB Jack Adapter from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack to 75 Ohm Mini SMB Jack Adapter PE9608

URL: https://www.pasternack.com/mini-smb-jack-mini-smb-jack-straight-adapter-pe9608-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9608 REV 1.2 2
