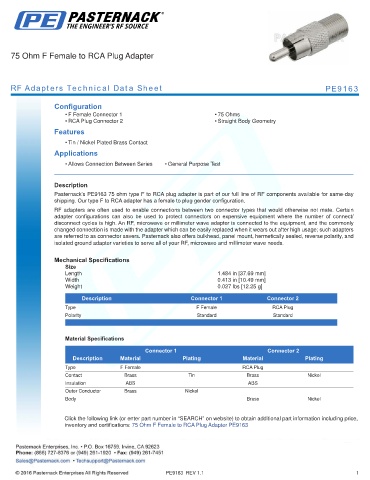

75 Ohm F Female to RCA Plug Adapter

RF Adapters Technical Data Sheet PE9163

Configuration
• F Female Connector 1 • 75 Ohms
• RCA Plug Connector 2 • Straight Body Geometry
Features

• Tin / Nickel Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9163 75 ohm type F to RCA plug adapter is part of our full line of RF components available for same-day
shipping. Our type F to RCA adapter has a female to plug gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.484 in [37.69 mm]
Width 0.413 in [10.49 mm]
Weight 0.027 lbs [12.25 g]
.
Description Connector 1 Connector 2
Type F Female RCA Plug
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type F Female RCA Plug
Contact Brass Tin Brass Nickel
Insulation ABS ABS
Outer Conductor Brass Nickel
Body Brass Nickel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female to RCA Plug Adapter PE9163

PE9163 REV 1.1 1
