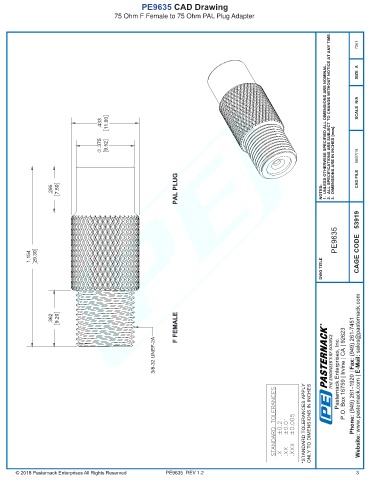

PE9635 CAD Drawing
75 Ohm F Female to 75 Ohm PAL Plug Adapter

7361

SIZE A

SCALE N/A

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
.433 11.00

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
.375 9.52 08/07/18

3. DIMENSIONS ARE IN INCHES [mm]. CAD FILE
.295 7.50 PAL PLUG NOTES:

PE9635 CAGE CODE 53919

1.154 29.30
DWG TITLE

.362 9.20
F FEMALE R
P.O. Box 16759 | Irvine | CA | 92623
THE ENGINEER'S RF SOURCE
3/8-32 UNEF-2A Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
Pasternack Enterprises, Inc.

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9635 REV 1.2 3
