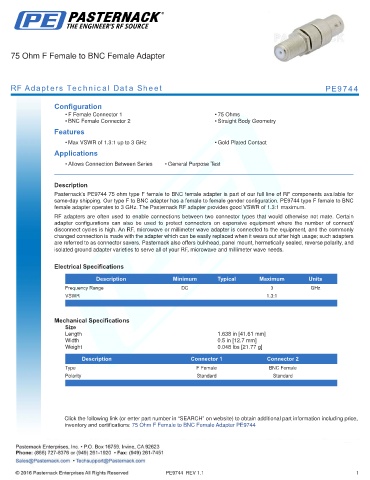

75 Ohm F Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9744

Configuration
• F Female Connector 1 • 75 Ohms
• BNC Female Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.3:1 up to 3 GHz • Gold Plated Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9744 75 ohm type F female to BNC female adapter is part of our full line of RF components available for
same-day shipping. Our type F to BNC adapter has a female to female gender configuration. PE9744 type F female to BNC
female adapter operates to 3 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.3:1
. .

Mechanical Specifications
Size
Length 1.638 in [41.61 mm]
Width 0.5 in [12.7 mm]
Weight 0.048 lbs [21.77 g]
.
Description Connector 1 Connector 2
Type F Female BNC Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female to BNC Female Adapter PE9744

PE9744 REV 1.1 1
