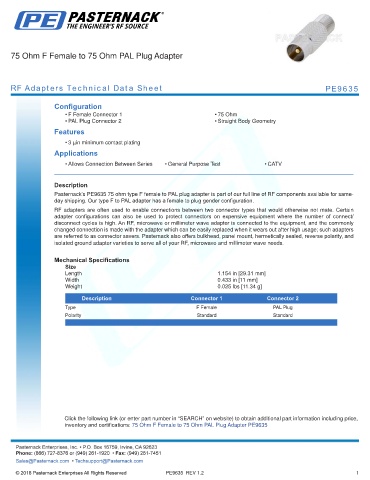

75 Ohm F Female to 75 Ohm PAL Plug Adapter

RF Adapters Technical Data Sheet PE9635

Configuration
• F Female Connector 1 • 75 Ohm
• PAL Plug Connector 2 • Straight Body Geometry
Features

• 3 µin minimum contact plating
Applications

• Allows Connection Between Series • General Purpose Test • CATV
.
Description
Pasternack’s PE9635 75 ohm type F female to PAL plug adapter is part of our full line of RF components available for same-
day shipping. Our type F to PAL adapter has a female to plug gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.154 in [29.31 mm]
Width 0.433 in [11 mm]
Weight 0.025 lbs [11.34 g]
.
Description Connector 1 Connector 2
Type F Female PAL Plug
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female to 75 Ohm PAL Plug Adapter PE9635
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
