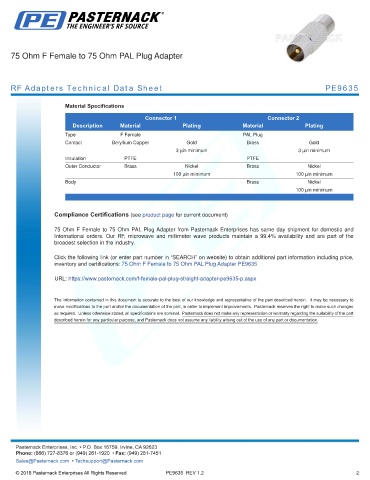

75 Ohm F Female to 75 Ohm PAL Plug Adapter

RF Adapters Technical Data Sheet PE9635

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type F Female PAL Plug
Contact Beryllium Copper Gold Brass Gold
3 µin minimum 3 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µin minimum 100 µin minimum
Body Brass Nickel
100 µin minimum
. .

Compliance Certifications (see product page for current document)
75 Ohm F Female to 75 Ohm PAL Plug Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female to 75 Ohm PAL Plug Adapter PE9635

URL: https://www.pasternack.com/f-female-pal-plug-straight-adapter-pe9635-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9635 REV 1.2 2
