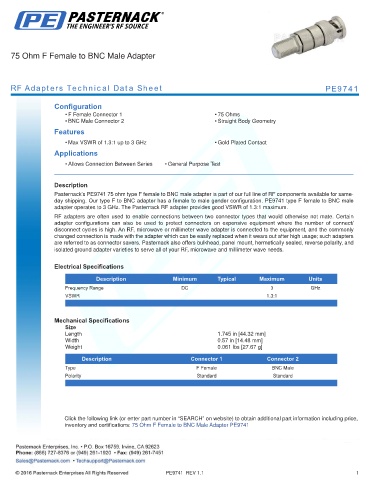

75 Ohm F Female to BNC Male Adapter

RF Adapters Technical Data Sheet PE9741

Configuration
• F Female Connector 1 • 75 Ohms
• BNC Male Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.3:1 up to 3 GHz • Gold Plated Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9741 75 ohm type F female to BNC male adapter is part of our full line of RF components available for same-
day shipping. Our type F to BNC adapter has a female to male gender configuration. PE9741 type F female to BNC male
adapter operates to 3 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.3:1
. .

Mechanical Specifications
Size
Length 1.745 in [44.32 mm]
Width 0.57 in [14.48 mm]
Weight 0.061 lbs [27.67 g]
.
Description Connector 1 Connector 2
Type F Female BNC Male
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female to BNC Male Adapter PE9741

PE9741 REV 1.1 1
