75 Ohm SMB Jack to Mini SMB Plug Adapter

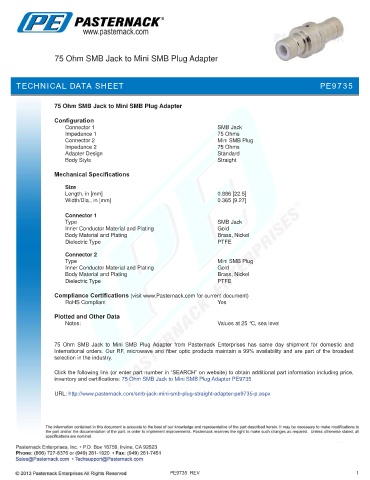

TECHNICAL DATA SHEET PE9735

75 Ohm SMB Jack to Mini SMB Plug Adapter

Configuration
Connector 1 SMB Jack
Impedance 1 75 Ohms
Connector 2 Mini SMB Plug
Impedance 2 75 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 0.886 [22.5]
Width/Dia., in [mm] 0.365 [9.27]
.
Connector 1
Type SMB Jack
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Connector 2
Type Mini SMB Plug
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm SMB Jack to Mini SMB Plug Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Jack to Mini SMB Plug Adapter PE9735

URL: http://www.pasternack.com/smb-jack-mini-smb-plug-straight-adapter-pe9735-p.aspx

PE9735 REV 1
