75 Ohm SMC Tee Adapter Jack-Plug-Jack

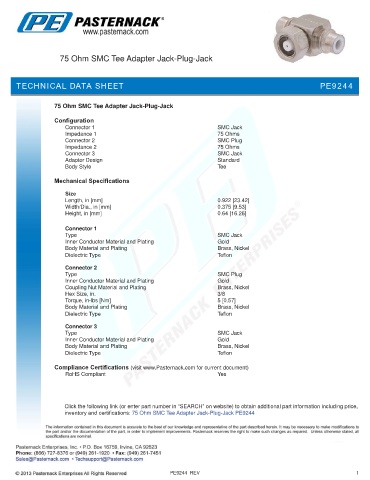

TECHNICAL DATA SHEET PE9244

75 Ohm SMC Tee Adapter Jack-Plug-Jack

Configuration
Connector 1 SMC Jack
Impedance 1 75 Ohms
Connector 2 SMC Plug
Impedance 2 75 Ohms
Connector 3 SMC Jack
Adapter Design Standard
Body Style Tee
Mechanical Specifications

Size
Length, in [mm] 0.922 [23.42]
Width/Dia., in [mm] 0.375 [9.53]
Height, in [mm] 0.64 [16.26]
.
Connector 1
Type SMC Jack
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type SMC Plug
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Hex Size, in. 3/8
Torque, in-lbs [Nm] 5 [0.57]
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 3
Type SMC Jack
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Tee Adapter Jack-Plug-Jack PE9244

PE9244 REV 1
