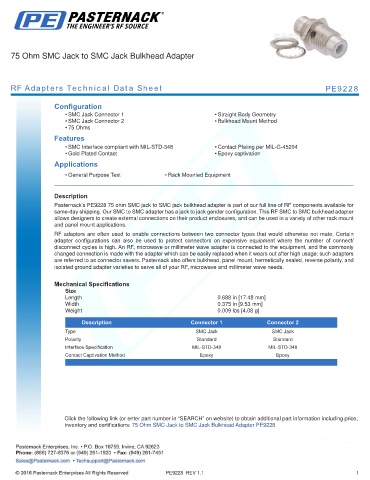

75 Ohm SMC Jack to SMC Jack Bulkhead Adapter

RF Adapters Technical Data Sheet PE9228

Configuration
• SMC Jack Connector 1 • Straight Body Geometry
• SMC Jack Connector 2 • Bulkhead Mount Method
• 75 Ohms
Features
• SMC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• Gold Plated Contact • Epoxy captivation
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9228 75 ohm SMC jack to SMC jack bulkhead adapter is part of our full line of RF components available for
same-day shipping. Our SMC to SMC adapter has a jack to jack gender configuration. This RF SMC to SMC bulkhead adapter
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.688 in [17.48 mm]
Width 0.375 in [9.53 mm]
Weight 0.009 lbs [4.08 g]
.
Description Connector 1 Connector 2
Type SMC Jack SMC Jack
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Contact Captivation Method Epoxy Epoxy
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Jack to SMC Jack Bulkhead Adapter PE9228
